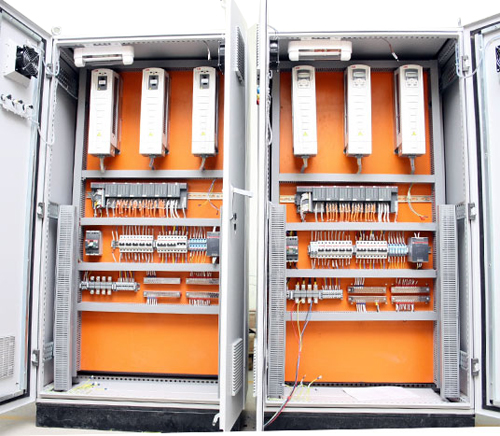

Electrical VFD control panels are designed to control the speed of electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications. The VFD panels are widely used in tube mills, paper mills, extruder plants, rolling Mills, cable industry and CTL Lines. They are even installed in hospitals, business houses and other public places. VFD control panel are designed to match variable speed requirements of a process unit and so are vigorously tested on various speed parameters.
Roughly 50% of the total electrical energy generated in the world is consumed by rotating equipment. Variable frequency drive technology offers a cost-effective method to match motor speed to load demands and represents a state-of-the-art opportunity to reduce operating costs and improve overall productivity. VFD Cabinets are custom made to your specifications for your application.
Application |
Specification |
Supply Voltage: |
3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision |
Rated Current: |
0.5HP to 630HP |
Rated Insulation: |
1100 V |
Ambient Temperature: |
45 Deg C |
Degree of Protection: |
IP42, IP45, IP55 |
System Protection: |
Earth Fault, Under Voltage, Overload, Surge protection, Single phasing, Short circuit |
Type Tested: |
Megger Test, HV Test |
Bus Bar (EC Grade): |
Aluminium, Copper with colour coded Heat shrink sleeve |
Switchgear: |
Schneider, Siemens, L&T, Legrand, C&S, Eaton |
Mounting: |
Base Frame, Stand, Wall Mounting |
Cable Entry: |
Top, Bottom, side |
Fabrication: |
1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: RAL7035/RAL7032, Dust proof Gasket. |
Termination: |
Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket. |
