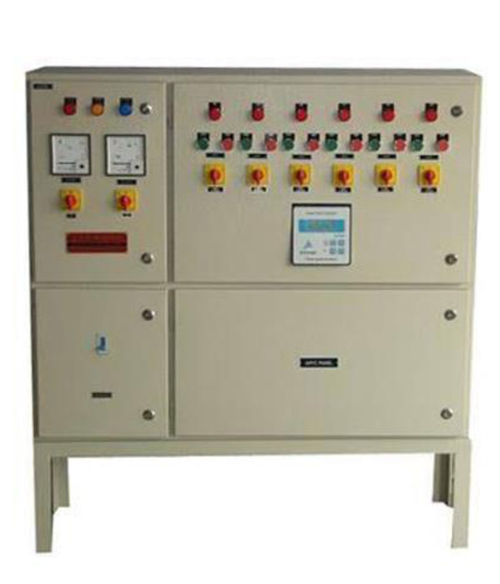

Reactive Power compensation system is designed to work automatically on LT power supply to measure, display & connect, disconnect the required capacitor banks through Thyristor /Capacitor Duty contactor with protection of MCB / HRC Fuses & series reactors to each bank to achieve the set Target power factor.
Thyristor /Contactor Switched Automatic power factor system is the highly accurate, properly designed system with required creep age distance as per required standards. APFC System equipped with advanced, Digital Microprocessor based relay to measure, calculate and display all electrical network parameters.
It accurately measures cycle to cycle reactive power requirement for required capacitors are connected to switching element / device installed in the system, so as required capacitors are connected / disconnected to the network. APFC Controllers close loop fast response multi method switching [MMS] algorithm helps system to have close & precise control on power factor.
Application |
Specification |
Supply Voltage: |
3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision |
Rating: |
Up to 1200 Kvar |
Rated Insulation: |
1100 V |
Ambient Temperature: |
45 Deg C |
Degree of Protection: |
IP42, IP45, IP55 |
System Protection: |
Under Voltage, Short circuit |
Type Tested: |
Megger Test, HV Test |
Bus Bar (EC Grade): |
Aluminium, Copper with colour coded Heat shrink sleeve |
Switchgear: |
Schneider, Siemens, L&T, Legrand, C&S, Eaton |
Mounting: |
Base Frame, Stand, Wall Mounting |
Cable Entry: |
Top, Bottom |
Fabrication: |
1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: RAL7035/RAL7032, Dust proof Gasket. |
Termination: |
Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket |
