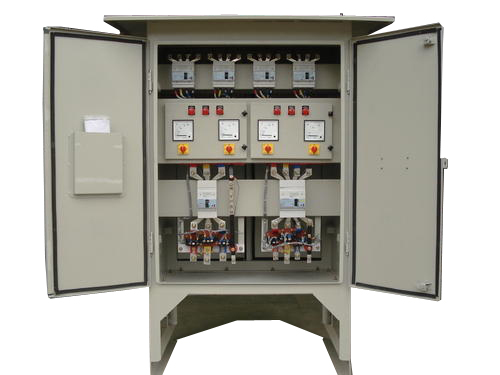

Feeder pillar is an effective electrical enclosure to provide electrical services for low voltage electrical distribution applications. It is designed as compact and robust for outdoor/rugged use with appropriate class of protection form dust/ solids and water/rain. EQUINOX offer Feeder pillars that are mainly used for housing or installing various equipment or street lighting units. Low-voltage feeder pillars form a basic part of most public and many private distribution networks. Feeder pillars are connected to the distribution board.
Application |
Specification |
Supply Voltage: |
3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision |
Rated Current: |
20Amp to 800Amp |
Rated Insulation: |
1100 V |
Ambient Temperature: |
45 Deg C |
Degree of Protection: |
IP42, IP45, IP55 |
System Protection: |
Short circuit |
Type Tested: |
Megger Test, HV Test |
Bus Bar (EC Grade): |
Aluminium, Copper with colour coded Heat shrink sleeve |
Switchgear: |
Schneider, Siemens, L&T, Legrand, C&S, Eaton |
Mounting: |
Base Frame, Stand, Wall Mounting |
Cable Entry: |
Top, Bottom, side |
Fabrication: |
1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: Red (As per ISI), Dust proof Gasket. |
Termination: |
Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket. |
