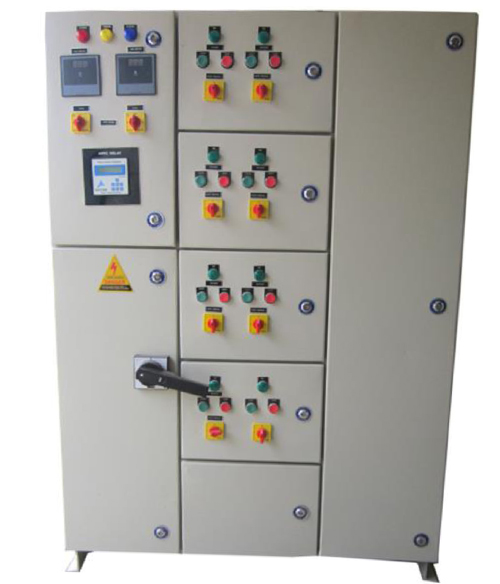

The Motor Control Center are used in industrial and commercial applications for connecting the individual motors for manually, remotely or automatically starting, stopping selecting forward and reverse rotation, selecting and regulating the speed, regulating and limiting the torque and protecting against overload, single phasing, phase imbalance, earth fault, under current, under / over voltage, lock rotor current, high winding temperature etc.
Application |
Specification |
Supply Voltage: |
3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision |
Rated Current: |
100Amp to 6300Amp |
Rated Insulation: |
1100 V |
Ambient Temperature: |
45 Deg C |
Degree of Protection: |
IP42, IP45, IP55 |
System Protection: |
Earth Fault, Under Voltage, Overload, Surge protection, Single phasing, Short circuit |
Type Tested: |
Megger Test, HV Test |
Bus Bar (EC Grade): |
Aluminium, Copper with colour coded Heat shrink sleeve |
Switchgear: |
Schneider, Siemens, L&T, Legrand, C&S, Eaton |
Mounting: |
Base Frame, Stand, Wall Mounting |
Cable Entry: |
Top, Bottom |
Fabrication: |
1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: RAL7035/RAL7032, Dust proof Gasket. |
Termination: |
Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket. |
