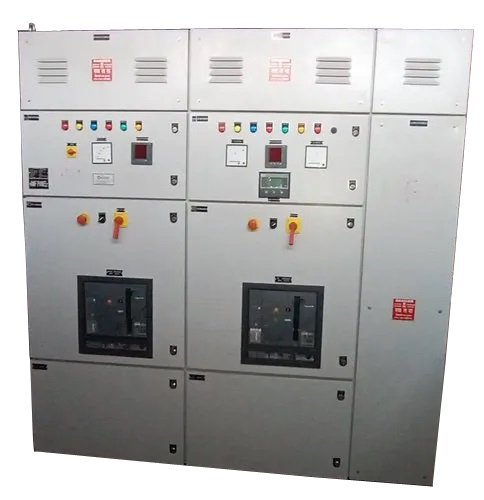

Auto Mains Failure Panels

enquiry

Auto Main Failure Panels, also known as AMF panels, are used to automatically changeover from mains electricity supply to stand-by generator or gen set on failure of the mains supply. When the mains supply is restored, the system automatically changes back and stops the gen set. The stand-by generator will be eventually shut down after a short cooling down period.

We manufacture and supply AMF (Auto Mains Failure) Panel as per the specific requirements of the clients. These panels are used for controlling power supply in various industries like processing plants, hospitals etc. On the request of the clients, we customized these panels (both automatic and manual modes) to meet client-specific requirements.

Application

Specification

Supply Voltage:

3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision

Rated Current:

100Amp to 6300Amp

Rated Insulation:

1100 V

Ambient Temperature:

45 Deg C

Degree of Protection:

IP42, IP45, IP55

System Protection:

Earth Fault, Under Voltage, Overload, Surge protection, Single phasing, Short circuit

Type Tested:

Megger Test, HV Test

Bus Bar (EC Grade):

Aluminium, Copper with colour coded Heat shrink sleeve

Switchgear:

Schneider, Siemens, L&T, Legrand, C&S, Eaton

Mounting:

Base Frame, Stand, Wall Mounting

Cable Entry:

Top, Bottom, side

Fabrication:

1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: RAL7035/RAL7032, Dust proof Gasket.

Termination:

Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket.
