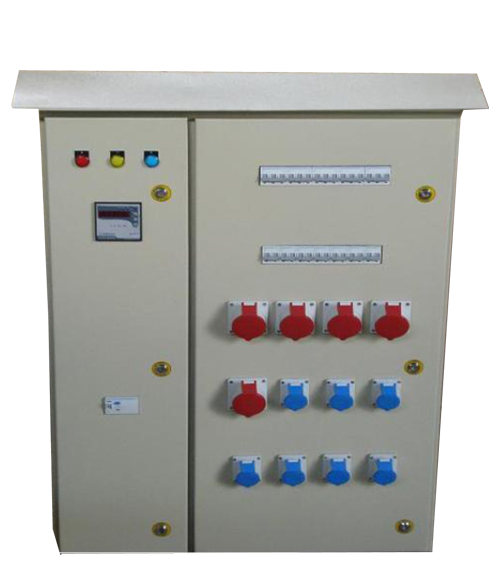

Industrial Socket Panels

enquiry

Industrial and multiphase plugs and sockets provide a connection to the electrical. Mains rated at higher voltages and currents than household plugs and sockets. They are generally used in polyphase systems, with high currents, or when. Protection from environmental hazards is required.

Application

Specification

Supply Voltage:

3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision

Rated Current:

16A, 32A, 63A (Single phase and Three phase)

Rated Insulation:

1100 V

Ambient Temperature:

45 Deg C

Degree of Protection:

IP42, IP45, IP55

System Protection:

Short circuit

Type Tested:

Megger Test, HV Test

Bus Bar (EC Grade):

Aluminium, Copper with colour coded Heat shrink sleeve

Switchgear:

Schneider, Siemens, L&T, Legrand, C&S, Eaton

Mounting:

Base Frame, Stand, Wall Mounting

Cable Entry:

Top, Bottom, side

Fabrication:

1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: Red (As per ISI), Dust proof Gasket.

Termination:

Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket.
